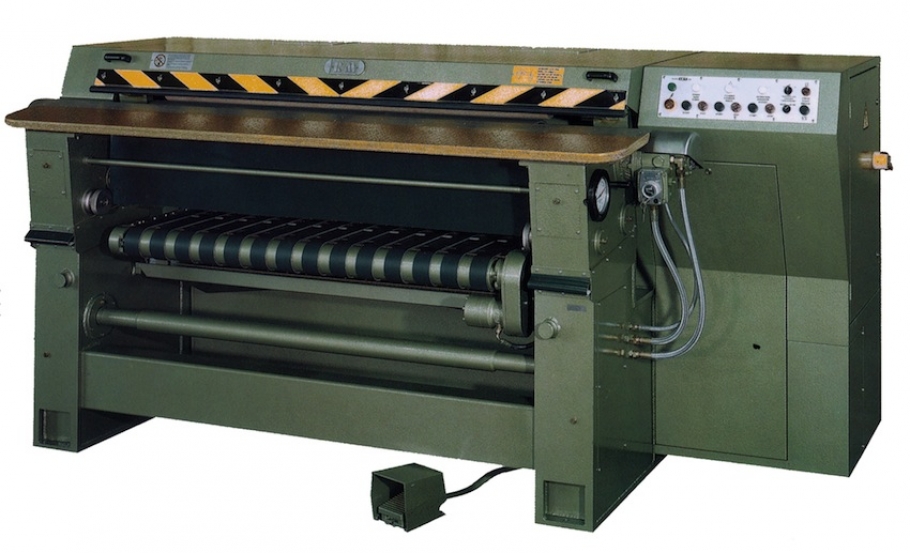

WOOLTEXTILE PLATES THROUGH-FEED HYDRAULIC POLISHING MACHINES

with grooved cylinder of wooltextile plates, with support chromed antisliding cylinder, complete with fittings, with low conveyor, with electric apparature, with safety device, with electric motors, without electroexhauster.

Characteristics:

• Support structure, in welded steel, comprising boxed sides and connecting beams.

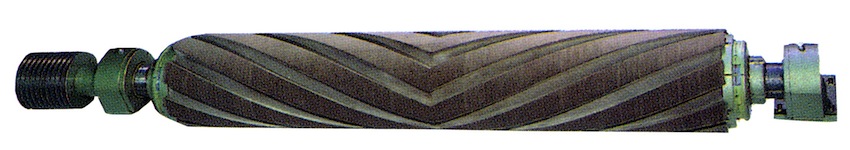

• Groove cylinder of wooltextile plates dynamically balanced by means of adjustable counterweights on the flanges.
• Support chromed antisliding cylinder.

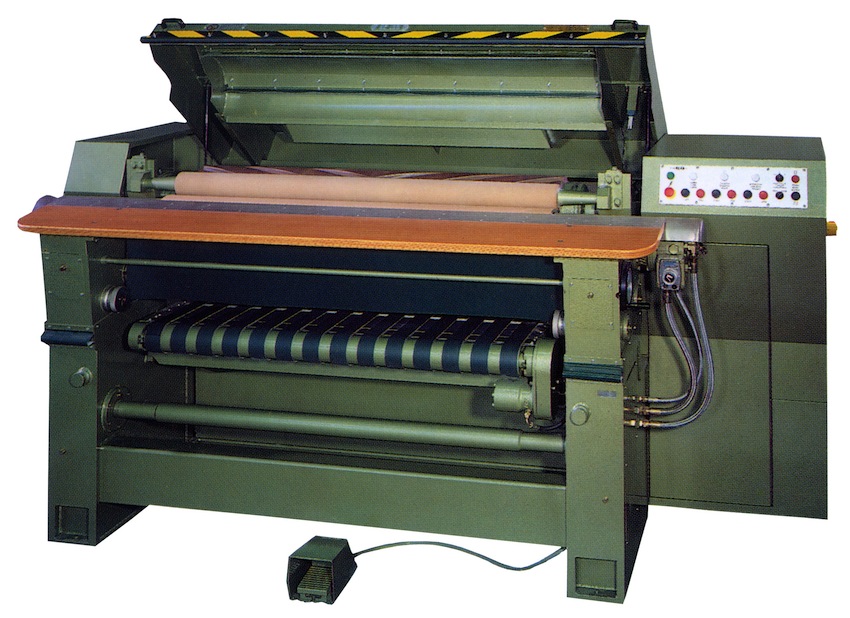

• Hydraulic opening and closing with all components installed in protected positions, running on rolling bearings.
• Opening and closing pedal, with gradual control or two set positions.
• Hydraulically operated feed system with speed continually adjustable from 0 to 28 m./1'.
• Decimal regulation of thickness with read-off of value set.
• Device operating on both sides providing rapid adjustment by 3 tenths in either direction of the position of the support-roller in relation to the polishing roll.
• Automatic blending device both at beginning and at the end of each pass.
• Upper hide-retainer roller to ensure reliable feed with no effort from the operator.
• Total dust exhauster system with upper and lower suction intakes.
• Hide conveyor belt with option of hide offload to front or rear, hydraulically operated with speed automatically varied in relation to feed speed.
• Intrinsic operator safety devices throughout the processing zone with continual electronic monitoring of efficiency. The device opens the machine and stops the rollers by means of electro-magnetic disk brakes.
• Electric housed in sealed cabinet with auxiliary voltage 24 Volts, complying with international safety standards.
