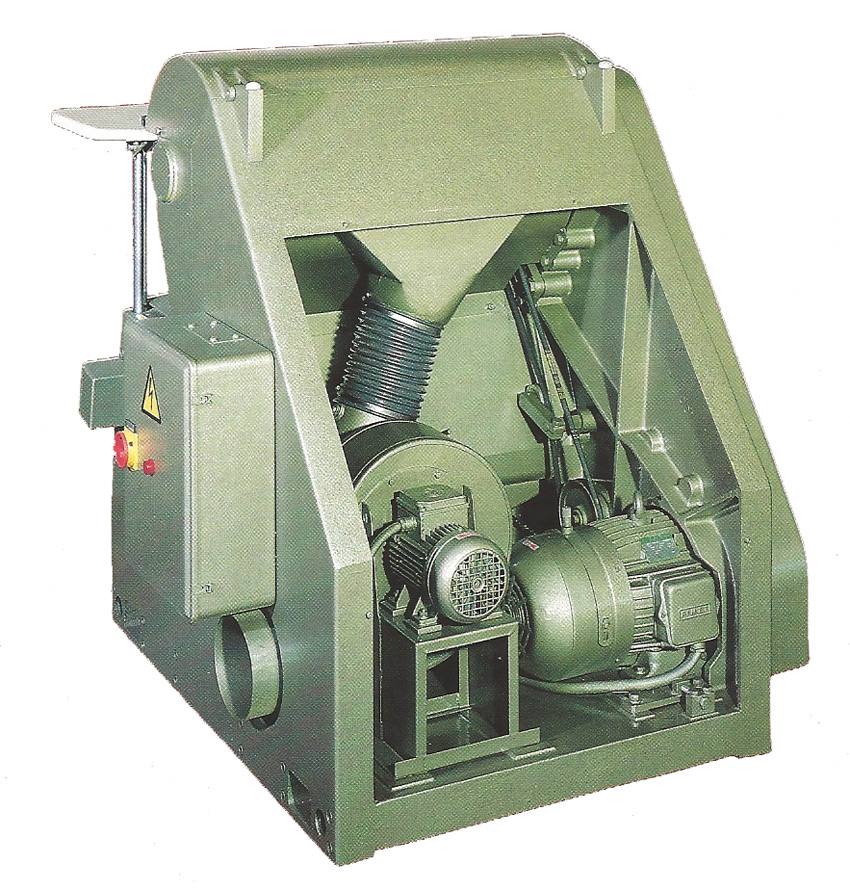

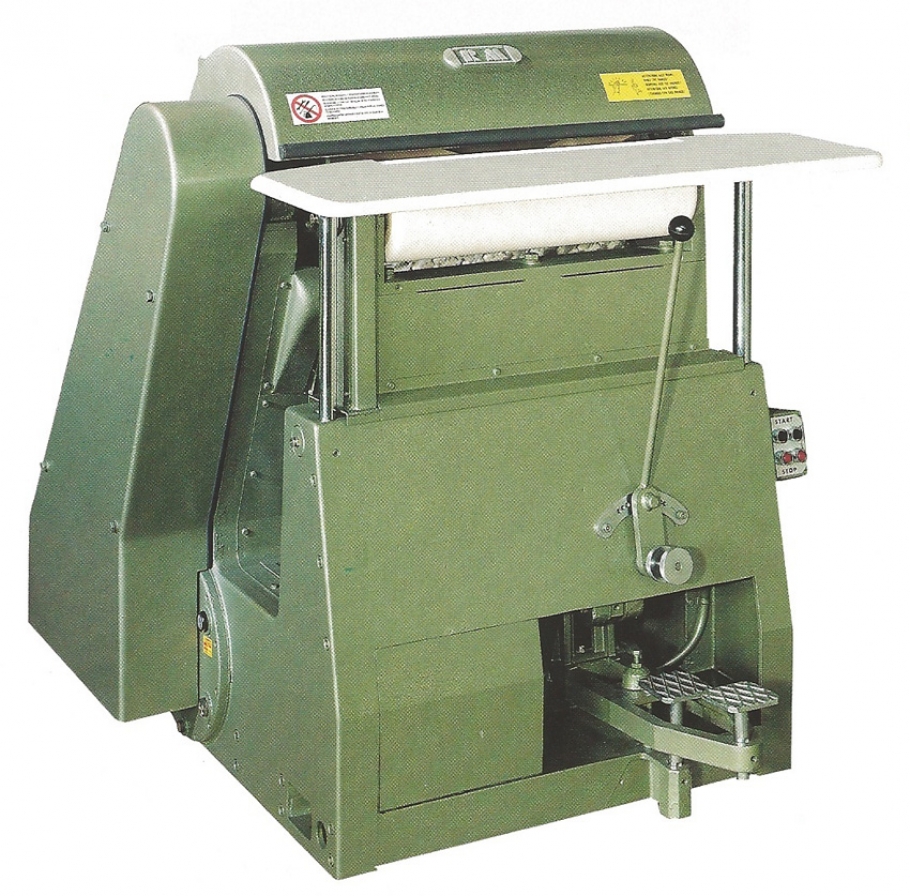

POLISHING MACHINES OF 600 MM
complete with fittings, with electric apparature, with safety device, with electric motors and electroexhauster.
Characteristics:
- Particularly strong and vibration-proof bearing structure consisting of cast-iron basement and sides.
- Dynamically balanced polishing rolls, by means of adjustable counterweights on the flanges.
- Thermal expansion compensating device for the "amber" roll so as to ensure constant blocking on the shaft.
- Support cylinder covered with a high thickness wool sleeve and a rubber cushion which increases its elasticity and assures a safe transport and an uniform polishing.
- Toothed clutch device for the inversion rotation of the support cylinder.
- Decimal thickness adjustment.
- Pneumatic barrier safety device on the whole working area which controls the immediate stop of the polishing roll and of the support cylinder.
- Locking automatic device of polishing roll protection crankcase during working.
- Safety device which at the opening of the polishing rolls protection crankcase causes the immediate stop.
- Complete dust scavenging system trough an electroexhauster built into the machine.
- Electric device in waterproof cabinet with ancillary voltage of 24 volts, in conformity with safety international rules.
- Particularly strong and vibration-proof bearing structure consisting of cast-iron basement and sides.
- Dynamically balanced polishing rolls, by means of adjustable counterweights on the flanges.
- Support cylinder covered with a high thickness wool sleeve and a rubber cushion which increases its elasticity and assures a safe transport and an uniform polishing.
- Toothed clutch device for the inversion rotation of the support cylinder.
- Decimal thickness adjustment.
- Pneumatic barrier safety device on the whole working area which controls the immediate stop of the polishing roll and of the support cylinder.
- Complete dust scavenging system trough an electroexhauster built into the machine.
- Electric device in waterproof cabinet with ancillary voltage of 24 volts, in conformity with safety international rules.
| Working width |
mm |
600 |
| Power of main motor |
HP(Kw) |
7,5 (5,5) |
| Exauster motor power |
HP(Kw) |
1 (0,75) |
| Floor space |
mm |
1540x1250 |
| Net weight |
Kg |
1150 |
| Gross weight with seapackage |
Kg |
1350 |
| Volume with seapackage |
m3 (mm) |
4,5 (1750x1600xH1600) |
