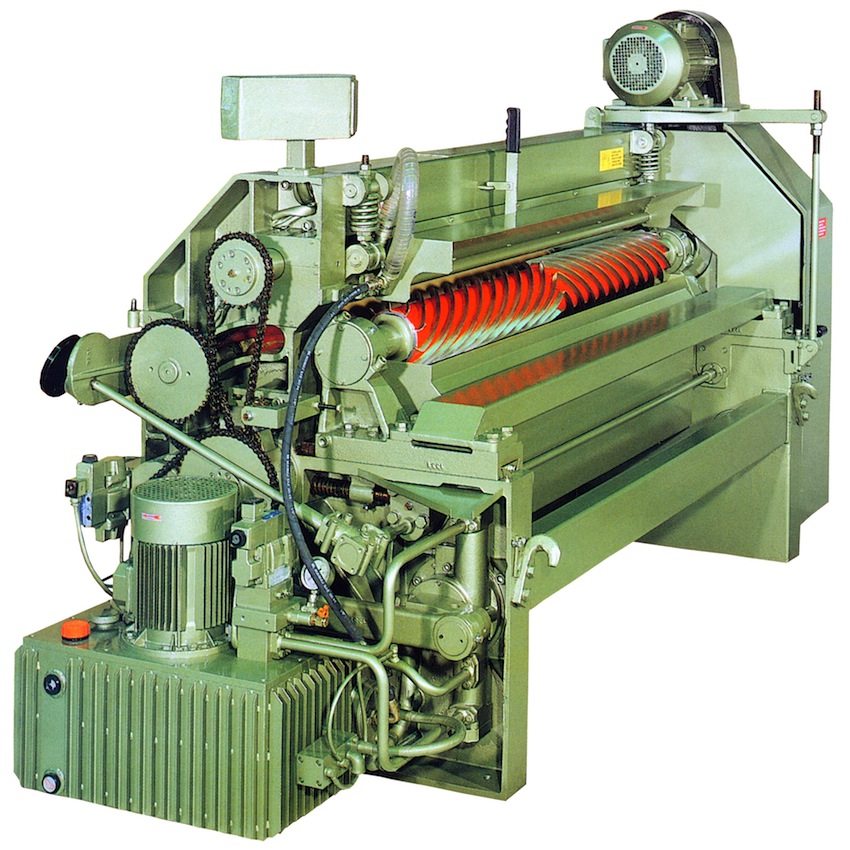

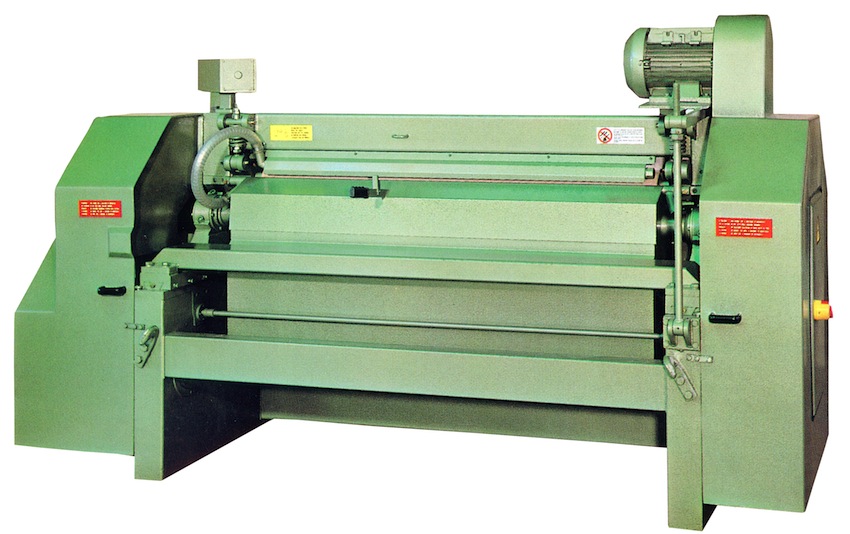

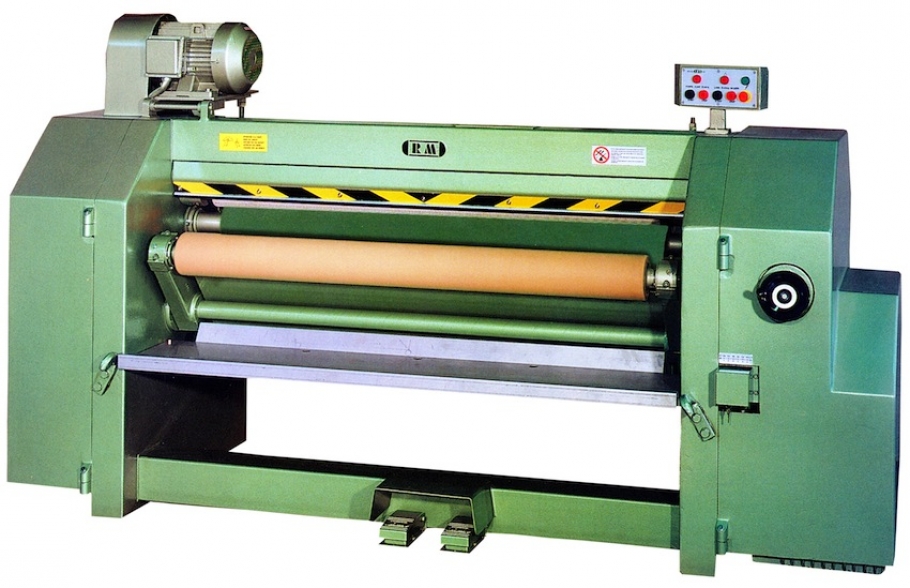

HYDRAULIC SCUDDING AND UNHAIRING MACHINES
complete with fittings, with electric equipment, with three safety devices, with hydraulic feed reverse device and with all electric motors.
Characteristics:
- Very robust portable structure formed by sides of cast iron joined by steel girders.
- Slicker cylinder of large diameter in treated steel of high quality, fitted on self-aligning roller bearings.
- Electronic balancing of the slicker cylinder before and after the fitting of the slickers.
- Slickers integrally in stainless steel AISI 316 for a long life of the edge.
- Supporting cylinder covered by antioil rubber, hardness as required by the customer.
- Transport cylinder covered with anti-oil rubber and symmetrical straight grooving in order to guarantee an efficient transport without risk of damaging the grain.
- Double washing device of the transport cylinder to ensure the complete cleaning and consequently the transport efficiency.
- Automatic water supply on working area only with closed machine.
- Hydraulic control transport with continuous adjustable speed from 30 to 54 m/1'.
- Hydraulic transport inversion device taking on the most difficult parts of the hide without having to open the machine for a second feed-in.
- Hydraulic control for opening and closing the machine with adjustable limit stop shock absorbers.
- Opening-closing pedal adjustable either for sensitive action of for stable control.
- Decimal adjustment of the thickness.
- Control members for the opening and closing located on the exterior of the machine in a position which is protected from the water, and rotating on anti-friction bearings.
- Barrier safety device over the whole face of the machine.
- Second infra red safety device.
- Sliding case of slicker cylinder to eliminate the risk of accidental contact with the hands.
- Built-in electric equipment in waterproof cabinet with auxiliary voltage of 24 Volts in compliance with international security standards.
- Very robust portable structure formed by sides of cast iron joined by steel girders.
- Slicker cylinder of large diameter in treated steel of high quality, fitted on self-aligning roller bearings.
- Electronic balancing of the slicker cylinder before and after the fitting of the slickers.
- Slickers integrally in stainless steel AISI 316 for a long life of the edge.
- Supporting cylinder covered by antioil rubber, hardness as required by the customer.
- Two transport cylinders covered with anti-oil rubber and symmetrical straight grooving in order to guarantee an efficient transport without risk of damaging the grain.
- Double washing device of the transport cylinder to ensure the complete cleaning and consequently the transport efficiency.
- Automatic water supply on working area only with closed machine.
- Hydraulic control transport with continuous adjustable speed from 25 to 45 m/1'.
- Hydraulic transport inversion device taking on the most difficult parts of the hide without having to open the machine for a second feed-in.
- Hydraulic control for opening and closing the machine with adjustable limit stop shock absorbers.
- Opening-closing pedal adjustable either for sensitive action of for stable control.
- Decimal adjustment of the thickness.
- Control members for the opening and closing located on the exterior of the machine in a position which is protected from the water, and rotating on anti-friction bearings.
- Barrier safety device over the whole face of the machine.
- Second infra red safety device.
- Sliding case of slicker cylinder to eliminate the risk of accidental contact with the hands.
- Built-in electric equipment in waterproof cabinet with auxiliary voltage of 24 Volts in compliance with international security standards.
- Very robust portable structure formed by sides of cast iron joined by steel girders.
- Slicker cylinder of large diameter in treated steel of high quality, fitted on self-aligning roller bearings.
- Electronic balancing of the slicker cylinder before and after the fitting of the slickers.
- Slickers integrally in stainless steel AISI 316 for a long life of the edge.
- Supporting cylinder covered by antioil rubber, hardness as required by the customer.
- Two transport cylinder covered with anti-oil rubber and symmetrical straight grooving in order to guarantee an efficient transport without risk of damaging the grain.
- Double washing device of the transport cylinder to ensure the complete cleaning and consequently the transport efficiency.
- Automatic water supply on working area only with closed machine.
- Hydraulic control transport with continuous adjustable speed from 25 to 45 m/1'.
- Hydraulic transport inversion device taking on the most difficult parts of the hide without having to open the machine for a second feed-in.
- Hydraulic control for opening and closing the machine with adjustable limit stop shock absorbers.
- Opening-closing pedal adjustable either for sensitive action of for stable control.
- Decimal adjustment of the thickness.
- Control members for the opening and closing located on the exterior of the machine in a position which is protected from the water, and rotating on anti-friction bearings.
- Barrier safety device over the whole face of the machine.
- Second infra red safety device.
- Sliding case of slicker cylinder to eliminate the risk of accidental contact with the hands.
- Built-in electric equipment in waterproof cabinet with auxiliary voltage of 24 Volts in compliance with international security standards.
| Working width |
mm |
1200 |
| Power of main motor |
HP(Kw) |
7,5 (5,5) |
| Pump motor power |
HP(Kw) |
4 (3) |
| Floor space |
mm |
1150x2600 |
| Net weight |
Kg |
2100 |
| Gross weight with seapackage |
Kg |
2450 |
| Volume with seapackage |
m3 (mm) |
8,3 (1400x2900xH2050) |
| Working width |
mm |
1600 |
| Power of main motor |
HP(Kw) |
10 (7,5) |
| Pump motor power |
HP(Kw) |
4 (3) |
| Floor space |
mm |
1150x3000 |
| Net weight |
Kg |
2350 |
| Gross weight with seapackage |
Kg |
2800 |
| Volume with seapackage |
m3 (mm) |
9,5 (1400x3300xH2050) |
| Working width |
mm |
1500 |
| Power of main motor |
HP(Kw) |
15 (11) |
| Pump motor power |
HP(Kw) |
7,5 (5,5) |
| Floor space |
mm |
1350x3250 |
| Net weight |
Kg |
3200 |
| Gross weight with seapackage |
Kg |
3700 |
| Volume with seapackage |
m3 (mm) |
12,6 (1600x3550xH2220) |
| Working width |
mm |
1800 |
| Power of main motor |
HP(Kw) |
20 (15) |
| Pump motor power |
HP(Kw) |
7,5 (5,5) |
| Floor space |
mm |
1350x3550 |
| Net weight |
Kg |
3400 |
| Gross weight with seapackage |
Kg |
4000 |
| Volume with seapackage |
m3 (mm) |
13,7 (1600x3850xH2220) |
| Working width |
mm |
2100 |
| Power of main motor |
HP(Kw) |
20 (15) |
| Pump motor power |
HP(Kw) |
7,5 (5,5) |
| Floor space |
mm |
1350x3850 |
| Net weight |
Kg |
3800 |
| Gross weight with seapackage |
Kg |
4500 |
| Volume with seapackage |
m3 (mm) |
14,8 (1600x4150xH2220) |
| Working width |
mm |
2400 |
| Power of main motor |
HP(Kw) |
23 (17) |
| Pump motor power |
HP(Kw) |
7,5 (5,5) |
| Floor space |
mm |
1350x4150 |
| Net weight |
Kg |
4200 |
| Gross weight with seapackage |
Kg |
5000 |
| Volume with seapackage |
m3 (mm) |
15,8 (1600x4450xH2220) |
