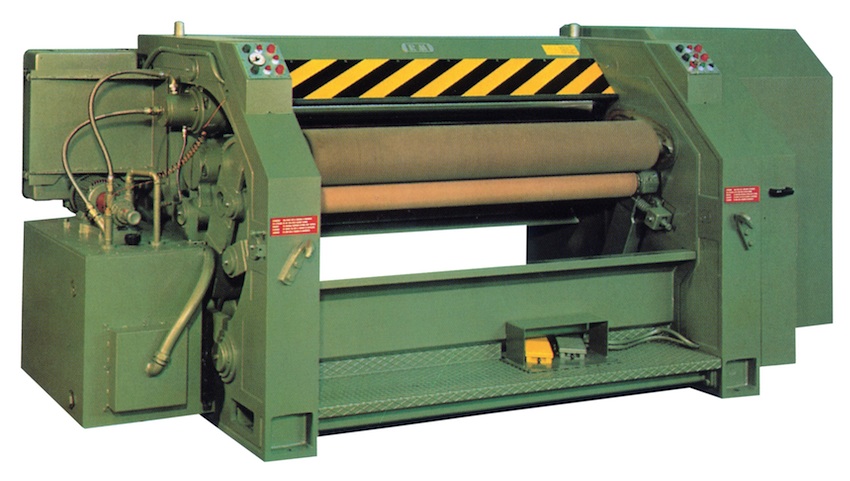

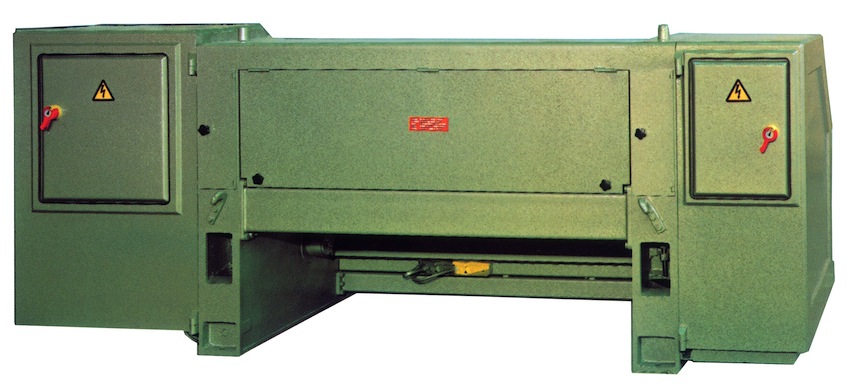

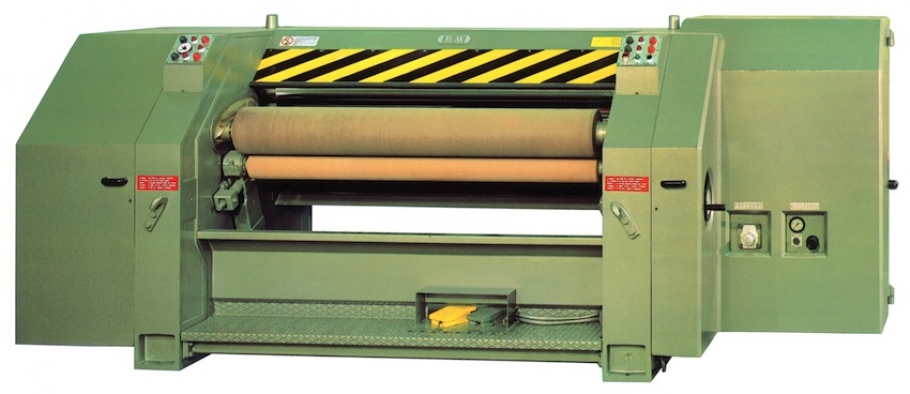

HYDRAULIC SETTING OUT MACHINES WITH TOP HEATED ROLLER BY MEANS OF A CABINET WITH DIATHERMIC OIL HAVING ADJUSTABLE TEMPERATURE UP TO 170° C.

complete with fittings, with electric apparature, with three safety devices, with hydraulic feed reverse device and with all electric motors.

Characteristics:

• Very sturdy carrying structure formed by side frames in cast iron joined by steel girders.
• Large diameter slicker roller in treated quality steel mounted on self-aligning roller bearings supports.
• Electronic balancing of the slicker roller before and after slicker assembling.
• Slickers in AISI 316 steel thus granting a long life of the cutting edge.
• Hydraulically control transport for opening and closing the machine with adjustable limit stop shock absorbers.
• Hydraulic control transport with continuos adjustable speed from 20 to 34 m/1'.
• Hydraulic transport reversing device thus enabling the recovery of the heaviest parts of the hides without having to open the machine for a second feed-in.
• Independent-pump circuit for the hydraulic pressure cylinders of top roller thus granting a perfect and constant working pressure independently from the machine motions.
• Decimal thickness adjustment with reading of the pre-set value.
• Control members for the opening and closing located in the inside of side frames, in a water-protected position and rotating on rolling bearings
• Opening and closing pedal both for sensitive action and for fixed controls.
• Barrier safety device acting on the whole face of the machine.
• Second infra red safety device.
• Sliding case of slicker cylinder to eliminate the risk of accidental contact with the hands.
• Built-in electric equipment in waterproof cabinet with auxiliary voltage 24 Volts in compliance with international security standards.
